Global Cachà GC-100-12 Network Adapter - Connects RS232 Serial, Relay, Infrared Devices and Smart Sensors to a Wired Ethernet (12-Inch)
Global Cachà GC-100-12 Network Adapter - Connects RS232 Serial, Relay, Infrared Devices and Smart Sensors to a Wired Ethernet (12-Inch) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Brand: Global Caché
Color: New
Features:

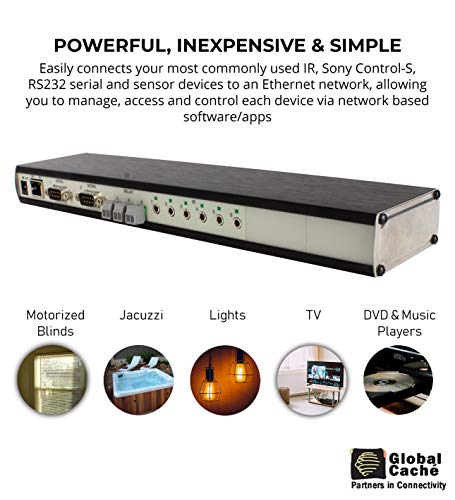

- CONNECTS WITH MORE AUTOMATED DEVICES - The Global Caché GC-100-12 provides an easy connection for network-based IR, RS232 serial, Sony Control-S, sensors, and relay contact closures.

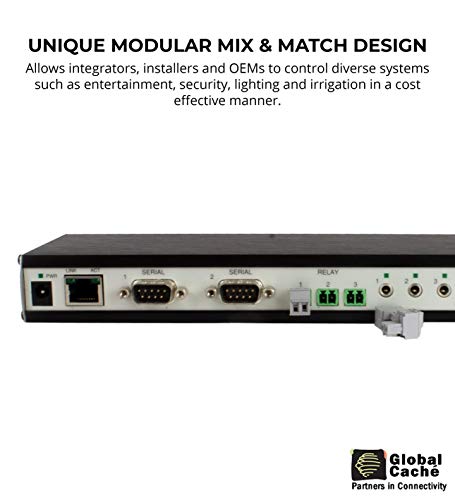

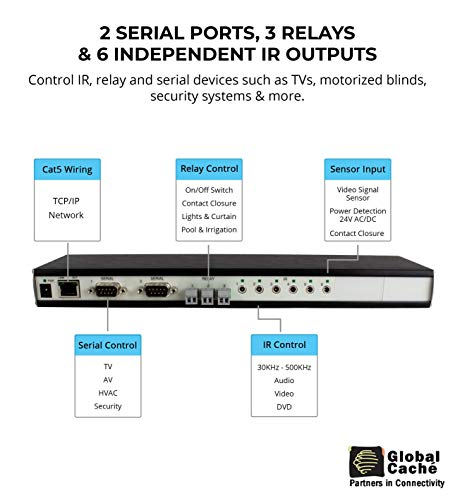

- CONTROLS VARIOUS ELECTRONIC DEVICES - It has 2 serial ports, 3 relay connections, and 6 independent IR outputs/sensor inputs. Conveniently switch on/off lights and contact closure with the GC-100-12.

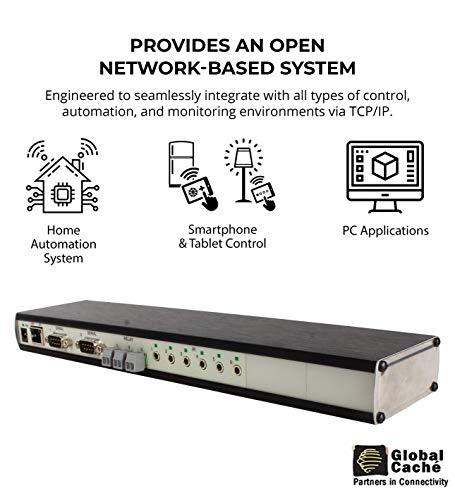

- OFFERS AN OPEN NETWORK-BASED SYSTEM - This network adapter supports TCP, DHCP, and HTTP protocols so you can configure and control diverse systems, e.g., entertainment and security.

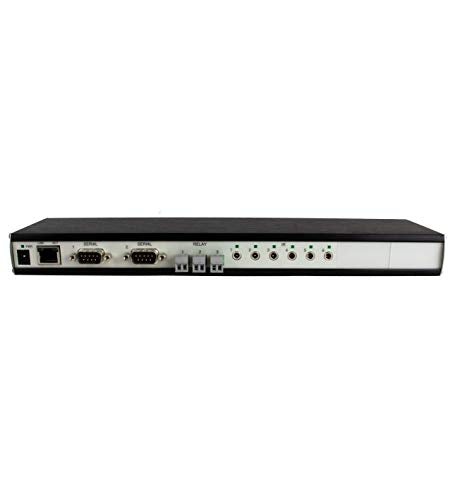

- PROVIDES CONVENIENT WIRED CONNECTIVITY - The GC-100-12 has an RJ-45 and 10 Base-T Ethernet for TCP/IP network interface. It integrates with all types of Smart Controls and Monitoring environments.
- WORKS WITH POPULAR CONTROL SOFTWARE - You can also use various control softwares including Creston, Extron, and Dukane ConVA with the GC-100-12 to remotely control DVR/VCR, AV equipment, lighting, and even irrigation.
PartNumber: GC-100-12
Details: Global Caché GC-100-12 Network Adapter A large number of people uses network-based automation and control software in keeping their homes safe and energy efficient. The Global Caché GC-100-12 connects and controls your home automated appliances or domotics to a network. It is engineered to integrate with IR, Sony Control-S, RS232 serial, sensors, and relay contact closures via TCP, DHCP, and HTTP protocols. The network adapter provides two serial ports, three relay connections, and six independent IR outputs/sensor inputs. This open network-based system allows you to remotely control the TV, AV, HVAC, DVD, smart sensors, and contact closure without operator intervention. The GC-100-12 also features fan-free, silent operation and complies with RoHS strict regulation. It is environmental-friendly. TECHNICAL SPECS: • Serial Connections: 2 • Relay Connections: 3 • Independent IR Outputs/Sensor Inputs: 6 • Network Connection: RJ-45, 10 Base-T • Network Protocols: TCP, DHCP, HTTP • Connectors: Male DB9 Serial, 3.5mm stereo jack IR/Sensor, screw terminal plug Relay • Control Options for Serial: TV, AV, HVAC, security • Control Options for Relay: Switch-controlled (On/Off) contact closure, lights, curtain, pool, irrigation • Control Options for IR: 30kHz~500kHz audio, video, DVD • Control Options for Sensor: Video signal sensor, power detection 24V AC/DC, contact closure • Power Requirements: 9~18V DC at 300mA • Certifications: FCC (Part 15, Class B), C-tick, CE, RoHS compliant • Dimensions (LxDxH): 12 x 3 x 1.3"
UPC: 410000074282
EAN: 0810466010020
Model: GC-100-12
Binding: Personal Computers
Item Note: Authorized? ?Global Caché? ?Dealer - All Warranty Claims & Services Will be Honored
Item Condition: New
